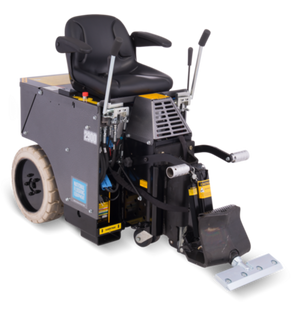

The National 2900 is a battery-powered ride-on floor scraper. National built it for high-speed soft goods removal and says it takes up VCT and other soft and hard goods quickly on time-sensitive jobs. This page covers the 2900 and the 2900DL, whose dual-lift front end lets the operator adjust blade angle and pitch from the seat; one manual (401878 Rev J) covers both.
Specifications
Figures from National's product page and operating manual. Where the two disagree, both are shown with the manual first.
| Spec | Value |
|---|---|
| Power | Battery; 4 HP motor (manual) |
| Batteries | Six 8 V, 180 AH batteries, part 5213-2 (manual parts list) |
| Input voltage | 120V/60 Hz domestic; 100V 50/60 Hz international, 2900-30XXXX (manual); 115V 60 Hz / 230V 50 Hz (product page) |
| Width | 24.5" (62 cm) |
| Length (without tooling) | 2900: 55" (140 cm); 2900DL: 60" (152.4 cm) |
| Height | 46.5" |
| Weight | 2900-10XXXX: 1,774 lb (805 kg); 2900-17XXXX: 1,910 lb (866 kg) (manual); 2900: 1,728 lb; 2900DL: 1,863 lb (product page) |
| Machine only / removable weight | 2900: 1,468 lb; 2900DL: 1,603 lb; removable weight 260 lb (product page) |
| Speed | Up to 160 ft/min (48.8 m/min) |
| Cutting heads | 8"-27" (20-68 cm) with matching scraper blades; ditching blades 2"-6" (manual) |
Maintenance schedule
From National's 2900 / 2900DL operating and service manual (401878 Rev J), page 18.
| Interval | What to do |
|---|---|
| Daily | Inspect extension cord for damage; check wheels, caster and wheel motors for build-up and clean; inspect all safety devices (e-stop, backup beeper, seat switch); inspect hoses and fittings for leaks; blow out the fan cover on the bottom of the motor after each job |
| After first 100 hrs, then every 200 hrs | Check hydraulic oil level; replace spin-on hydraulic oil filter |
| After first 500 hrs, then every 1,000 hrs | Change hydraulic fluid |
| Every 1,000 hrs | Grease front caster wheel |
Fluids and lubricants
What National specifies for this machine.
- Hydraulic oil: Texaco Rando 46 or a compatible ISO or AW #46 fluid from a brand-name manufacturer. Tank holds 6 gallons (22.7 L) total; plan on 5.5 gallons (20.8 L) at an oil change because some oil stays in the system.
Videos from National
Walkthroughs and how-to videos National has published for this machine, plus a few general ones that apply to it.
- 2900 Battery Replacement
- Battery Ride On Scrapers Start-Up
- Ride-On Scraper Battery Replacement
- Test the Battery Load on Your Rider
Sources
Everything on this page comes from these National Flooring Equipment pages and documents.
