Dust Extraction: Matching a HEPA Vacuum to Your Grinder

Sizing a dust collector to a grinder under OSHA Table 1, what HEPA and filter cleaning mean in practice, and the setup mistakes that kill airflow.

Updated · 2 min read

Safety

This guide is general information, not a substitute for the regulations or a qualified professional. Follow OSHA's silica standard for construction (29 CFR 1926.1153) and OSHA's asbestos rules for construction, and use an EPA-accredited asbestos professional for testing and abatement. State and local rules may be stricter.

A dust collector only protects the crew if it moves enough air at the tool. Size it to the grinder, keep the filter clean, and keep the hose short. OSHA's Table 1 spells out the minimums.[1]

Safety

This is a summary of the OSHA silica standard as it applies to grinders. Read the full Table 1 entry for your tool. See Silica dust and respiratory safety.

What Table 1 requires

Table 1 sets the minimum collector performance for each type of grinder.[1][2]

Tool Collector requirement
Walk-behind floor grinders and milling machines Airflow at or above the grinder manufacturer's recommendation; filter 99% or more efficient; a filter-cleaning mechanism

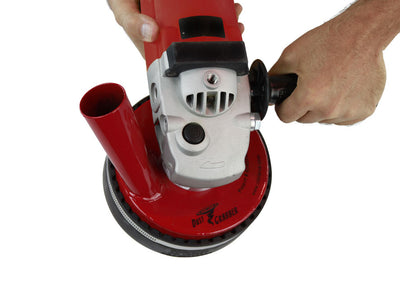

Handheld grinders (not mortar removal) Shroud plus 25 cfm or more per inch of wheel diameter; filter 99% or more efficient

For a 7" hand grinder, that works out to 175 cfm or more.[1] For walk-behinds, the number comes from the grinder's manual, not the vacuum's brochure.

Sizing a collector

Match real-world airflow, not the brochure number, to what the grinder needs.

  1. Find the recommended airflow in the grinder manual.
  2. Check the collector's rated airflow and filter efficiency. Rated airflow is measured under ideal conditions; real airflow drops with hose length, bends, and a loading filter.
  3. Pick a collector with headroom. Running at the edge of the rating means you'll fall under it once the filter loads.
  4. Add a pre-separator on big grinders. It drops most of the heavy dust before the filter, so airflow stays up longer.

HEPA and filter cleaning

The filter is what actually keeps silica out of the air, so it needs attention.

  • Table 1 asks for a filter that's 99% or more efficient.[1] True HEPA filters exceed that. Check the filter spec, not just the word on the label.
  • A filter-cleaning mechanism (pulse or shaker) knocks dust off the filter while you work. Use it on schedule, not when the grinder starts losing suction.
  • Replace damaged filters immediately. A torn filter blows silica straight back into the room.

Setup that keeps airflow up

How the collector is hooked up matters as much as its rating.

  • Keep hoses as short and straight as the job allows. Every extra length and bend costs airflow.
  • Match hose diameter to the tool port and collector inlet; reducers choke flow.
  • Check shroud skirts and seals. A gap at the floor pulls room air instead of dust.

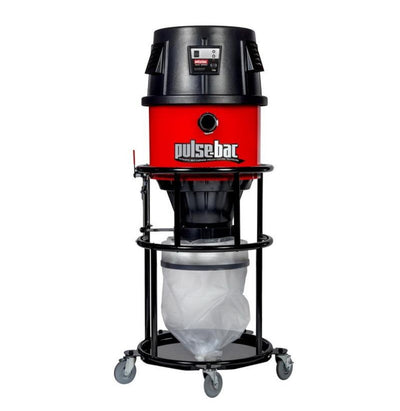

  • Bag-out collectors (continuous bags) let you empty without dumping dust into the air.

Common mistakes

Most dust control problems come from undersized equipment or careless handling.

  • Using a shop vac. Most don't meet the airflow or filter requirements.
  • One collector for two machines. Splitting a Y-connector halves the airflow at each tool.
  • Emptying dry. Dumping a collector by hand undoes all the collection.
  • Dry sweeping between passes. OSHA restricts it; vacuum instead.[1]

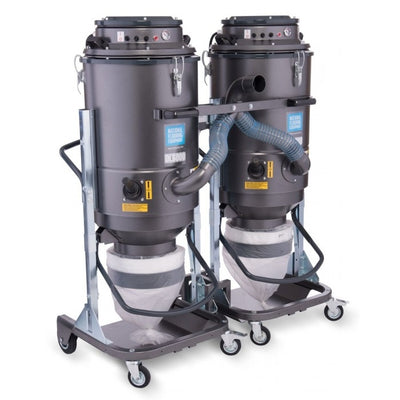

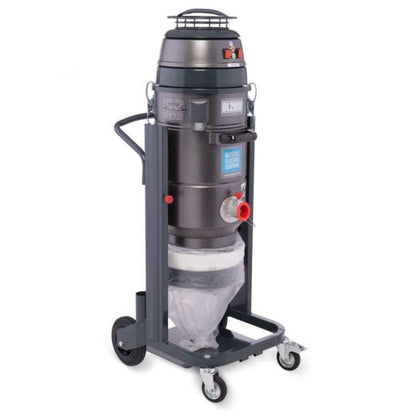

Collectors we carry

These are the collectors, pre-separators and shrouds we carry.

References

  1. OSHA 29 CFR 1926.1153, including Table 1
  2. OSHA: Silica in construction
