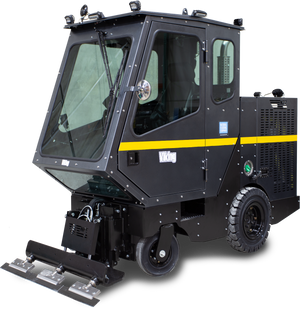

The National Viking is a diesel ride-on scraper with an enclosed, climate-controlled cab and a 49.5 HP Kubota turbo diesel. National built it for extreme outdoor conditions and large-scale removal such as asphalt, bridge decks, runways and sports courts. It uses National's dual-lift front end and takes one, two or three tooling holders.
Specifications
Figures from National's product page and operating manual. Where the two disagree, both are shown with the manual first.
| Spec | Value |
|---|---|
| Engine | 49.5 HP (36.9 kW) Kubota turbo diesel |
| Dimensions (W x L x H) | 57.9" x 122.5" x 93.3" (147 x 311 x 237 cm) |
| Weight | 6,000 lb (2,722 kg) (manual); 5,700 lb (2,586 kg) (product page) |
| Fuel capacity | 18 gallons (68 L) |
| Alternator | 90 amps, 12V |
| Hydraulic oil capacity | 10 gallons (38 L) (manual) |
| Engine oil capacity | 1.8 gallons (7.0 L) (manual) |
| Cab | ROPS/FOPS certified (ISO 3471 & ISO 3449); positive-pressure cab (product page) |
| Operating conditions | 32-104°F, relative humidity 95% or less (manual) |
Maintenance schedule
From National's Viking operating and service manual (406572 Rev B): the daily checklist on page 34 and the maintenance schedule on page 48. Engine service follows the Kubota schedule reproduced in the manual.
| Interval | What to do |
|---|---|
| Daily, before operation | Verify safety circuit, horn, backup alarm, rear view camera, exterior lights and cab pressurizer work; verify CO detector reads normal and fire extinguisher is present where required; check fuel, washer fluid, hydraulic oil, engine oil and coolant levels and that fuel and hydraulic caps are tight; check dual lift grease, deflector and shield; check wheels for wear and lug nuts; clear radiator, A/C condenser and hydraulic oil cooler fins and check hoses; inspect V-belts, battery, main power switch, breaker and engine wiring; check for leaks, damaged or loose parts and debris buildup |
| After first 50 hrs | Change engine oil and replace filter (National: engine warranty will not be honored if the 50-hour service is not performed and documented) |
| After first 100 hrs, then every 200 hrs | Replace hydraulic oil filter |
| Every 200 hrs | Inspect cabin air filter and cab pressurizer air filter; clean or replace as needed |
| After first 500 hrs, then every 1,000 hrs | Change hydraulic oil (10 gal / 38 L) |
| Every 1,000 hrs | Grease front caster wheels; grease cab door; lube door latch |
| Engine | Follow the Kubota engine schedule reproduced in the manual (pages 49-50) |
Fluids and lubricants
From the fluids and lubricants table in the Viking manual (page 58).
- Hydraulic oil: Chevron Rando HDZ 46 or a compatible name-brand fluid, all seasons; 10 gallons (38 L).
- Engine oil: API CJ-4. Above 77°F: SAE 30, 10W-30 or 15W-40. 32-77°F: SAE 20, 10W-30 or 15W-40. Below 32°F: SAE 10W, 10W-30 or 15W-40. Capacity 1.8 gallons (7.0 L).
- Fuel: ultra-low sulfur diesel, No. 2-D S15 above 14°F, No. 1-D S15 below 14°F; 18 gallons (68 L).
- Grease: Sta-Lube Super White lithium for the dual lift and cab door latch; Talon general purpose lithium for the front casters and cab door hinges.
Videos from National
Walkthroughs and jobsite videos National has published for the Viking.
- Viking Walkthrough
- Cliff's Notes: Viking
- Viking Demonstration
- Viking Demo Day
- Viking on the Job: Episode 1
- Viking on the Job: Episode 2
- Viking on the Job: Episode 3
- Session 1: Viking | NFE Virtual Tradeshow
Sources
Everything on this page comes from these National Flooring Equipment pages and documents.
