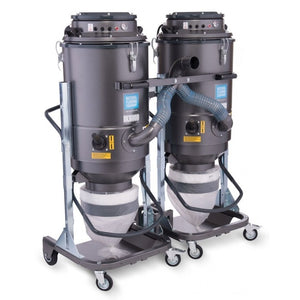

The DL6000 is a 230 V electric dust collector from National with a 3.15" inlet and a 64.6 sq ft filter. National's manual says it is built for vacuuming dusts and solid materials only, using the right filters, for professional industrial use.
National no longer lists the DL6000 on its website. The manual below is the latest revision National published.
Specifications
Specs from the DL6000 operating manual (403079 Rev B).
| Spec | Value |
|---|---|
| Dimensions | 24.4" W x 63" H x 63" L |
| Weight | 374.4 lb (170.2 kg) |
| Power | 4.6 hp (3.45 kW), 230 V / 60 Hz |
| Air movement | 336 CFM (1,080 m³/h) |
| Vacuum pressure | 98.4" H2O (2,500 mm H2O) |
| Filter | Polyester M, 64.6 sq ft (60,000 cm²) |
| Noise | 80 dBA |
| Inlet | 3.15" (80 mm) |
Maintenance schedule
From National's DL6000 operating manual (403079 Rev B).
| Interval | What to do |
|---|---|
| Before each use | Operate the filter shaking system; also after long operation |
| Every 800 hours | Replace motor brushes |
Sources
Everything on this page comes from National Flooring Equipment's own published material.
