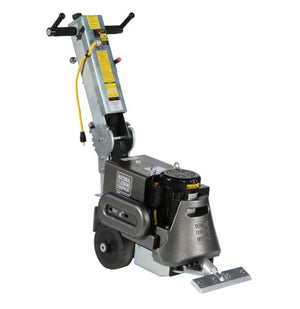

The National 6280HD Gladiator is an electric, hydraulically driven walk-behind scraper with a 1.5 HP motor. National designed it for hard goods such as ceramic tile and hardwood, and says it handles soft goods too. It shares many features with the 6280 Commander but carries a heavier torque rating, a rounded front weight, siped wheels and built-in wheel scrapers.
Specifications
Figures from National's product page and operating manual. Where the two disagree, both are shown with the manual first.
| Spec | Value |
|---|---|
| Power | Electric; 1.5 HP (1.12 kW) |
| Input / amps / RPM | 120V/60 Hz, 13A, 1725 RPM; 230V/50 Hz, 8A, 1425 RPM; 110V/50 Hz, 13A, 1425 RPM (manual); 115V, 14.7A / 230V, 10.5A (product page) |
| Speed | Up to 30 ft/min (9.1 m/min) on 120V; 13 m/min on 230V; 7 m/min on 110V/50 Hz (manual) |
| Width | 17.75" (45 cm) |
| Height | 46.75" (119 cm) max; 30" (76 cm) handle folded |
| Length | 49.5" (126 cm) max; 29.5" (75 cm) handle folded |
| Weight | 490 lb (222.3 kg); machine only 369 lb (167.4 kg) |
| Removable weight | 78 lb (35.4 kg) front; 43 lb (19.5 kg) side |
| Noise | 77 dB |
| Vibration (X/Y/Z) | 3.2 / 5.1 / 5.0 m/s² (manual) |
Maintenance schedule
Daily and hour-based items are from National's 6280HD Gladiator operating and service manual (401897 Rev K), page 19. Weekly and bi-annual items are from National's 6280HD maintenance checklist; National recommends bi-annual items more often on rental machines.
| Interval | What to do |
|---|---|
| Daily | Inspect fasteners, wheels and blade holders for damage; clean built-up glue and debris from wheels, front weight and blade holder |
| Weekly | Check wheels, blade holder, power cord, switch, levers, axle pins, T-handle wrench, handle lock, wheel cleaner, labels and screws; remove debris |
| Every 50 hrs | Visually inspect internal parts; inspect safety devices and switches (power cord, wheel cleaners, switches) |
| Every 1,000 hrs | Inspect and replace isolators; inspect and replace cutting head bearing |
| Every 2,000 hrs | Change hydraulic fluid |
| Bi-annually | Check handle grips, blade holder bolts, blade holder and rear wheels; check cutting head bearing and isolators; replace the 1.5 gallons of Texaco Rando 46 hydraulic oil |
Fluids and lubricants
What National specifies for this machine.
- Hydraulic oil: Texaco Rando 46 or a compatible ISO or AW #46 fluid from a brand-name manufacturer. An oil change takes 1.5 gallons (checklist); the manual calls for a 2 gallon (8 L) container to drain it.
Videos from National
Walkthroughs and how-to videos National has published for this machine, plus a few general ones that apply to it.
- 6280HD Scraper Start-Up
- Removing Ceramic Tile with a 6280HD Gladiator
- How to Remove Thin Set Using a 6280HD Gladiator
- 6280HD Scraping Hard Wood Flooring
- 6280HD Gladiator Tooling Angle Attachment
- Difference Between the 6280 and 6280HD scrapers
- Using Transport Wheels on Your Walk-Behind Scraper
- Replace Your Walk-Behind Wheel Motors
Sources
Everything on this page comes from these National Flooring Equipment pages and documents.
- National 6280HD Gladiator Walk-Behind Scraper product page
- National Flooring Equipment: 6280HD Gladiator Operating & Service Manual (401897 Rev K) (PDF)
- National Flooring Equipment: 6280HD Maintenance Checklist (PDF)
- National Flooring Equipment: Walk-Behind Scraper Comparison Guide (PDF)
- National Flooring Equipment: Walk-Behind Scraper Training Guide (PDF)
