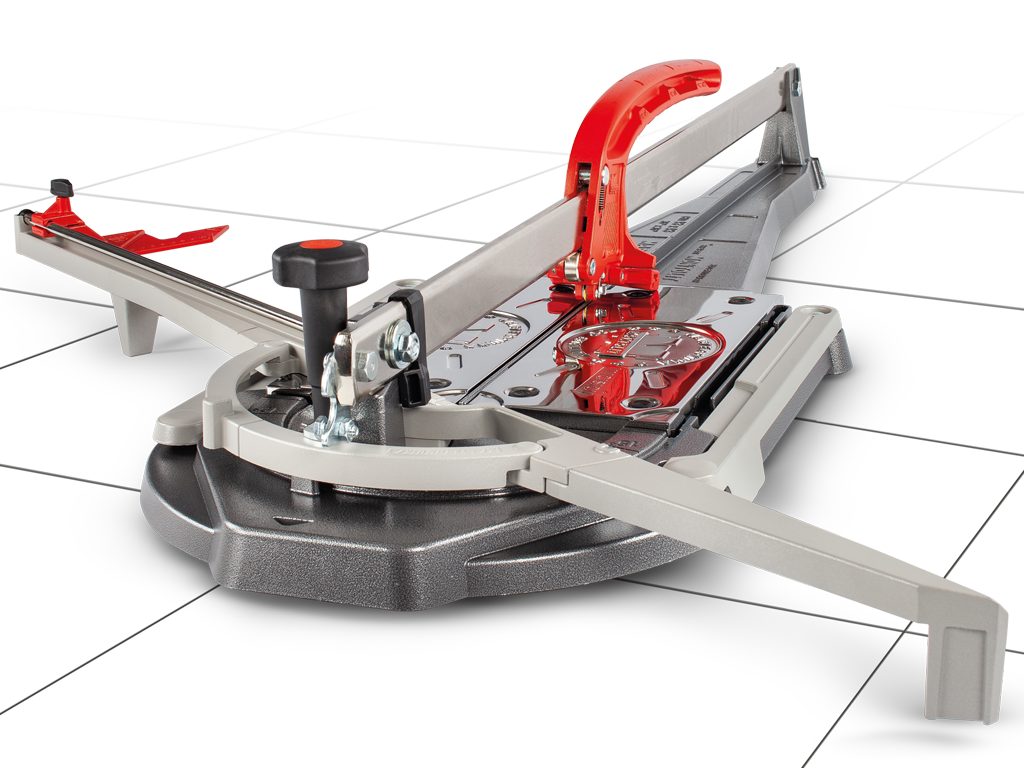

Montolit Masterpiuma P5 Tile Cutter

Montolit

Montolit Masterpiuma P5 Tile Cutter

$615.78

The Montolit Masterpiuma P5 is a manual push tile cutter built for front cuts, thick cuts and large-format porcelain. Scoring pressure can be modulated to handle everything from thin glass mosaic up to 20 mm thick tile, and the goniometric square rotates 45° left and right for repeat angled cuts.

Available Options

Cutting Length

24-1/2″ (63P5XL) | 29″ (75P5) | 36″ (93P5) | 51-1/2″ (131P5) | 63-1/2″ (161P5)

Specifications

Manufacturer Part #	63P5XL, 75P5, 93P5, 131P5, 161P5
Max Straight Cut	24.5″ / 29″ / 36″ / 51.5″ / 63.5″
Max Diagonal Cut	17″ / 21″ / 26″ / 36.5″ / 44.5″
Max Tile Thickness	3/4″
Weight	24.2 / 30.8 / 33.0 / 55.0 / 63.9 lb
Square	Goniometric, rotates 45° left and right; folds within the frame footprint
Scoring Wheel	Titanium-coated tungsten carbide

Model Reference

63P5XL	24-1/2″ cut, 17″ diagonal
75P5	29″ cut, 21″ diagonal
93P5	36″ cut, 26″ diagonal
131P5	51-1/2″ cut, 36-1/2″ diagonal
161P5	63-1/2″ cut, 44-1/2″ diagonal

Ideal For

Large-Format PorcelainCeramic and Porcelain TileThick Pavers up to 20 mmGlass Mosaic

Ships from the manufacturer. Lead time varies by item; contact us for current availability or volume pricing.
