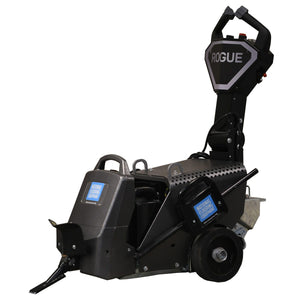

The National Rogue is an electric walk-behind scraper with two 1/3 HP drive motors and a 3/4 HP orbital motor. National lists it for hard goods and says that with the right tooling it takes up ceramic tile, wood floors, thin-set, sheet vinyl and linoleum. It is the only National walk-behind with dual-lift blade control, and it travels at up to 150 ft/min.
Specifications
Figures from National's product page and operating manual. Where the two disagree, both are shown with the manual first.
| Spec | Value |
|---|---|
| Motors | Two 1/3 HP (250W) drive motors; one 3/4 HP (550W) orbital motor |
| Input power | 100-240V, 50/60 Hz, 15A (manual); 120V, 60 Hz, 15A (product page) |
| Orbital speed | 650-1900 rpm (manual); 600-2000 RPM (product page) |
| Travel speed | 3-150 ft/min (0.9-45.7 m/min) |
| Width | 22.1" (56 cm) max; 19.4" (49 cm) with weights forward |
| Height | 45.3" (115 cm) max; 25.3" (64 cm) handle folded |
| Length | 56.8" (144 cm) handle back; 41.4" (105 cm) handle folded |
| Weight | 477 lb (216.4 kg) with removable weights and transport wheels (manual); 466 lb (211.4 kg) (product page) |
| Machine only / removable weight | 292 lb (132.4 kg) (manual); 289 lb (131.1 kg) (product page); removable weight 177 lb (80.3 kg) |
| Sound | Sound power 85.5 dBA; sound pressure 79.7 dBA (manual) |
| Extension cord / generator | 12 AWG (4 mm²) at 100-130V or 14 AWG (2.5 mm²) at 200-240V, 150 ft (45 m) max; generator 5 kW running watts (manual) |
Maintenance schedule
Daily, monthly and hour-based items are from National's Rogue operating and service manual (407170 Rev A). Weekly and bi-annual items are from National's Rogue maintenance checklist; National recommends bi-annual items more often on rental machines.
| Interval | What to do |
|---|---|
| Daily | Inspect wheels, tooling holder, blade holder, handle harness and power cord for damage; check for loose or missing fasteners; clean glue and debris from wheels, wheel cleaners, front weight, deflector and blade holder (never pressure wash or hose the machine) |
| Weekly | Check wheels, blade holder, cord, switch, drive controls, T-handle wrench, handle lock, wheel scraper, labels and screws; remove debris |
| Monthly | Test the E-stop and lanyard kill switch; test the GFCI |
| Every 500 hrs | Inspect linear actuator foam pads and wear liners; replace as needed |
| Every 1,000 hrs | Remove wheel coupling flanges and clean out debris; inspect isolators and replace as needed; inspect and grease cutting head bearing, replace as needed; check blade angle linkage for play and grease the four Zerk fittings |
| Bi-annually | Check blade holder bolts, blade holder and rear wheels; check cutting head bearing and isolators |
Fluids and lubricants
What National specifies for this machine.
- Cutting head bearing grease: Chevron SRI Grease 2 or equivalent (manual).
- Blade angle linkage Zerk fittings: mineral-based, lithium-thickened grease with graphite, McMaster-Carr 10195K823 or equivalent (manual).
Videos from National
Operating and jobsite videos National has published for the Rogue.
- Rogue Feature Overview
- How to operate Rogue #WeWentRogue
- Rogue Tile Demo
- Rogue Removes Epoxy Coating
- Rogue Removes Clear Coat #WeWentRogue
- Rogue: Delivery to Demo
Sources
Everything on this page comes from these National Flooring Equipment pages and documents.
- National Rogue Walk-Behind Scraper product page
- National Flooring Equipment: Rogue Operating & Service Manual (407170 Rev A) (PDF)
- National Flooring Equipment: Rogue Maintenance Checklist (PDF)
- National Flooring Equipment: Walk-Behind Scraper Comparison Guide (PDF)
- National Flooring Equipment: Walk-Behind Scraper Training Guide (PDF)
