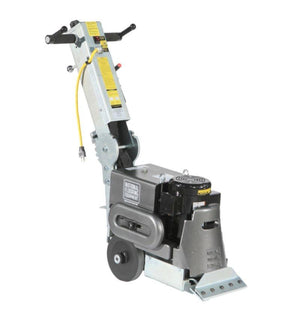

The National 6280 Commander (6280-COM) is an electric, hydraulically driven walk-behind scraper with a 1.5 HP motor. National built it for soft goods: commercial carpet, VCT, sheet vinyl, rubber tile and sport surfaces. The adjustable handle lets it work under counters and racking and in tight spaces, and orbital action keeps the blade in the work. The 6280-COM-ROM version has its own manual.
Specifications
Figures from National's product page and operating manual. Where the two disagree, both are shown with the manual first.
| Spec | Value |
|---|---|
| Power | Electric; 1.5 HP (1.12 kW) |
| Input / amps / RPM | 120V/60 Hz, 13A, 3450 RPM; 230V/50 Hz, 8A, 2850 RPM; 110V/50 Hz, 13A, 2850 RPM (manual); 115V, 13A, 3450 RPM / 230V, 7.5A, 2875 RPM (product page) |
| Speed | 0-45 ft/min on 120V; 0-20 m/min on 230V; 0-11 m/min on 110V/50 Hz (manual); 10-45 ft/min (3.0-13.7 m/min) (product page) |
| Width | 17.75" (45 cm) |
| Height | 46" (117 cm) max; 30" (76 cm) handle folded |
| Length | 51" (130 cm) max; 29" (74 cm) handle folded |
| Weight | 425 lb (192.8 kg); machine only 335 lb (152 kg) |
| Removable weight | 47 lb (21.3 kg) front; 43 lb (19.5 kg) side |
| Noise | 79 dB |
| Vibration (X/Y/Z) | 3.2 / 6.3 / 4.8 m/s² (manual) |
Maintenance schedule
Daily and hour-based items are from National's 6280 Commander operating and service manual (401891 Rev K), page 17. Weekly and bi-annual items are from National's 6280 maintenance checklist; National recommends bi-annual items more often on rental machines.
| Interval | What to do |
|---|---|
| Daily | Inspect fasteners, wheels and blade holders for damage; clean built-up glue and debris from wheels, front weight and blade holder |
| Weekly | Check wheels, blade holder, power cord, switch, forward/reverse levers, axle pins, T-handle wrench, handle lock, wheel cleaner, labels and screws; remove debris |
| Every 50 hrs | Visually inspect internal parts; inspect safety devices and switches (power cord, wheel cleaners, switches) |
| Every 1,000 hrs | Inspect and replace isolators; inspect and replace cutting head bearing |
| Every 2,000 hrs | Change hydraulic fluid |
| Bi-annually | Check handle grips, the five Allen bolts on the blade holder cover, blade holder and rear wheels; check cutting head bearing and isolators; replace the 1.5 gallons of Texaco Rando 46 hydraulic oil |
Fluids and lubricants
What National specifies for this machine.
- Hydraulic oil: Texaco Rando 46 or a compatible ISO or AW #46 fluid from a brand-name manufacturer. An oil change takes 1.5 gallons (checklist); the manual calls for a 2 gallon (8 L) container to drain it.
Videos from National
Walkthroughs and how-to videos National has published for this machine, plus a few general ones that apply to it.
- Staff Favorites: 6280 Walk Behind Scraper
- 6280 Commander Handle Replacement
- 6280 Commander Through the Years
- Difference Between the 6280 and 6280HD scrapers
- Using Transport Wheels on Your Walk-Behind Scraper
- Replace Your Walk-Behind Wheel Motors
- Walk-Behind Floor Scraper Blade Motion Explained
Sources
Everything on this page comes from these National Flooring Equipment pages and documents.
- National 6280 Commander Walk-Behind Scraper product page
- National Flooring Equipment: 6280 Commander Operating & Service Manual (401891 Rev K) (PDF)
- National Flooring Equipment: 6280 Maintenance Checklist (PDF)
- National Flooring Equipment: Walk-Behind Scraper Comparison Guide (PDF)
- National Flooring Equipment: Walk-Behind Scraper Training Guide (PDF)
