Shot Blasting: Shot Size, Travel Speed and Profile

How shot size, travel speed and machine setup control the profile a shot blaster leaves, plus magnets, dust collection and edges.

Updated · 2 min read

A shot blaster throws steel shot at the slab, recovers it, and throws it again, removing laitance and thin coatings and leaving a uniform profile. You control the result with two things: the size of the shot and how fast you walk.

Silica

Shot blasting releases respirable crystalline silica. Run it with a matched dust collector and follow OSHA 1926.1153.[7] See Silica dust and respiratory safety.

What profile to expect

Shot blasting is a mid-range profile method. Under ICRI 310.2R, shot blasting can produce CSP 2 to 9[2]; one manufacturer's guide narrows that to CSP 3 to 7.[5] See ICRI CSP profiles for what those numbers mean.

Shot size

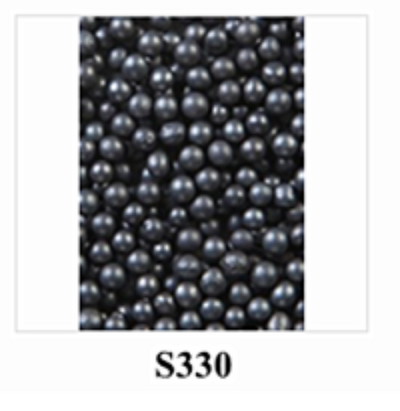

Bigger shot hits harder and leaves a deeper profile. This is the shot guide for the National A95, an 8" blaster.[1]

Goal Shot
Brush blast, penetrating sealer S-280 to S-330
Worn surfaces, tile mastic, urethane, epoxy S-330

The A95 isn't recommended for urethane over 10 mil or for removing 1/8" or more of concrete.[1] Always check your machine's manual for the shot sizes it's built for.

Travel speed

A light profile takes a faster travel speed than a coarse one.[3] Start with a lower feed rate, and don't stop mid-pass or you'll leave ridges.[4] Do a test pass and compare it to CSP chips before running the whole floor.

Setup

A few setup steps make the machine work properly from the first pass.

  1. Charge the magnets with a layer of shot before starting.[6]
  2. Load shot per your machine's manual.
  3. Connect a dust collector matched to the blaster. The A95 is paired with the National DL2000.[1]
  4. Run a test strip, check the profile, and adjust speed or shot.

Edges and cleanup

Blasters don't reach the wall.

  • Grind the edges with a shrouded hand grinder to match the profile.
  • Pick up loose shot with a hand magnet before anything else goes down.
  • Blasting follows the surface; it doesn't flatten it. See Choosing a prep method.

Common mistakes

These cause most uneven blast patterns.

  • Stopping in the middle of a pass. It leaves a deep spot.
  • Wrong shot for the goal. Too big over-profiles thin systems.
  • Undersized dust collector.
  • Leaving shot on the floor. It ends up under the flooring.

Equipment we carry

These are the blaster and shot we stock.

References

  1. National Flooring Equipment: A95 shot blaster performance guide
  2. ICRI: Concrete Repair Bulletin on ICRI 310.2R
  3. Husqvarna: Blastrac 1-8DPS operating instructions
  4. National Flooring Equipment: Shot blasting tips
  5. Sika: Surface preparation guide
  6. National Flooring Equipment: Shot blasting 101, charge your magnets
  7. OSHA 1926.1153, Silica in construction
