Setting Up a Power Stretcher: Tubes and Stretch Patterns

Setting up a power stretcher: head placement, pin depth, tail block bracing, tube runs and CRI's seven-step stretching sequence.

Updated · 2 min read

Power stretching is mandatory for stretch-in carpet.[1] A correct setup puts even tension across the room without tearing the backing or damaging the walls. The specs below follow the installation standard and the stretcher makers' instructions.[1][2][3]

Pick the head

The head grips the carpet, and the right one depends on the pile.

  • Use a pin head for cut pile and a cotton head for loop pile (section 11.4).[1]
  • Set pin depth so the pins go into the backing but not through it.[2]

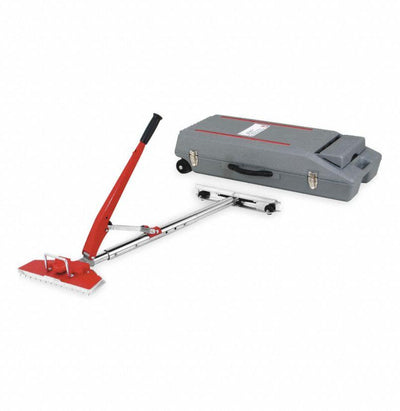

  • On a Roberts 10-254, pin depth is set by two screws on the pin-plate bar.[3]

Tubes and tail block

The tubes carry the force from the wall behind you to the head.

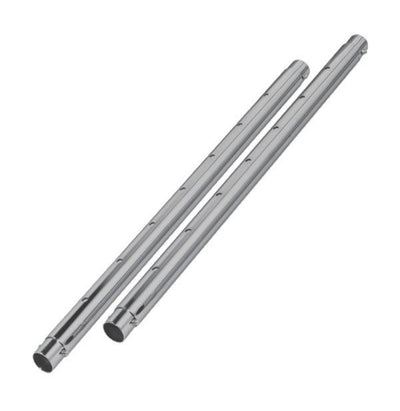

  • Crain extensions are 4' 8" each, and the full set reaches 23' 2".[2]
  • Keep the tubes in a straight line under load. A bowed run loses force and can kick.

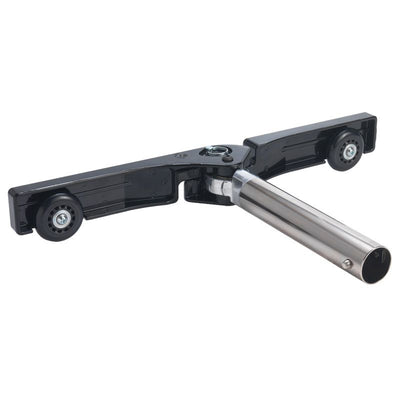

  • The Crain tail block is 20" long, so it spans at least two studs on 16" centers. It folds to 90° for corners and 135° for posts.[2]
  • Brace against a solid wall or a bracing plate. Pad the tail block to protect finished walls.

Head placement

Head position decides where the stretch goes.

  • Place the head 4" from the starting wall.[2]
  • The Crain No. 520 swivel head locks at 15° for normal angle stretching and 30° for extreme angles.[2]
  • Set the head so the stretch runs toward the wall you're hooking onto.

The stretching sequence

The standard lays out a seven-step pattern for a room with corners A, B, C and D.[1]

  1. Hook the carpet at corner A, about 3 ft each way along both walls.
  2. Power stretch at about a 15° angle from corner A toward corner B, and hook.
  3. Power stretch from A toward corner C, and hook.
  4. Knee-kick along wall A–B.
  5. Knee-kick along wall A–C.
  6. Power stretch toward wall C–D, working along the wall.
  7. Power stretch toward wall B–D, working along the wall.

Target at least 1% stretch in both length and width for tufted carpet with synthetic backing, unless the carpet maker says otherwise (section 11.5).[1] See Power stretcher vs knee kicker.

Common mistakes

Bad setups end in torn backing or damaged walls.

  • Pins set too deep. They pull through the backing.
  • Bracing against drywall between studs. The tail block punches through.
  • Bowed tube runs. Keep the line straight.
  • Skipping the sequence. Random stretching leaves slack pockets.

Stretchers and parts we carry

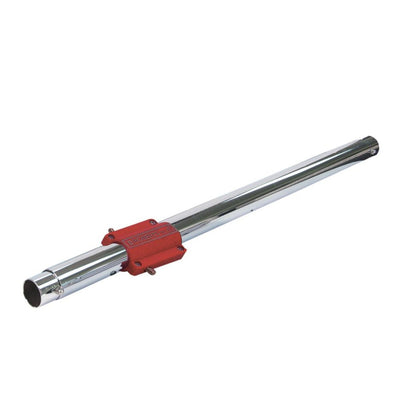

These are the stretchers, tubes and tail blocks we stock.

References

  1. CRI 105: Residential carpet installation standard
  2. Crain No. 499, 500 and 520 instruction manual
  3. Roberts 10-254 owner's manual
