Knee Protection for Floor Installers

Why floor layers' knees take more damage than almost any other trade, and how to choose hard-cap, soft-cap and no-cap knee pads for the surface you're on.

Updated Oct 7, 2026 · 3 min read

Safety

This guide is general information, not a substitute for the regulations or a qualified professional. Follow OSHA's silica standard for construction (29 CFR 1926.1153) and OSHA's asbestos rules for construction, and use an EPA-accredited asbestos professional for testing and abatement. State and local rules may be stricter.

Floor covering is one of the hardest trades on the knees. Good knee pads cushion the joint and spread the load. Pick the cap to suit the floor, so you protect your knees without marking the finish.

Why it matters

The research on floor layers is consistent: more years of kneeling means more knee damage.

NIOSH found that carpet layers file workers' compensation claims for traumatic knee injury at a rate far above the rest of the workforce, and recommends knee pads and the power stretcher.^[1]
A NIOSH health hazard evaluation of carpet and floor layers found more bursitis, fluid on the knee, knee skin infections and other knee symptoms than in a comparison group of other trades.^[2]
A study of Danish floor layers found a dose-response link between years of kneeling work and knee osteoarthritis.^[3] A companion study recommends cutting kneeling time, for example by using tools you can run standing up.^[4]

Knee pads help, but changing how the work is done helps more. NIOSH ranks protective gear below that kind of change.^[5] Using a power stretcher instead of a knee kicker, and stand-up tools where they exist, takes load off the knees. See Power stretcher vs knee kicker.

Pick the cap for the surface

The cap is what touches the floor, so match it to what you're kneeling on.

Cap	Best for	What the maker says it does
Hard plastic	Concrete, demo, tack strip	Wears longest on concrete and guards against sharp objects like tack strip pins (Gundlach 504H)^[6]

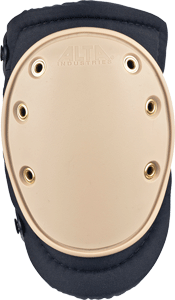

Soft rubber	Sheet vinyl and finished floors	Won't mar or dent sheet vinyl (Gundlach 504SN)^[7]

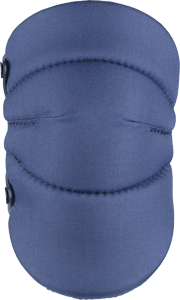

No cap	Floors that dent easily	Capless, for sheet vinyl and other floors that could dent (Gundlach 507)^[8]

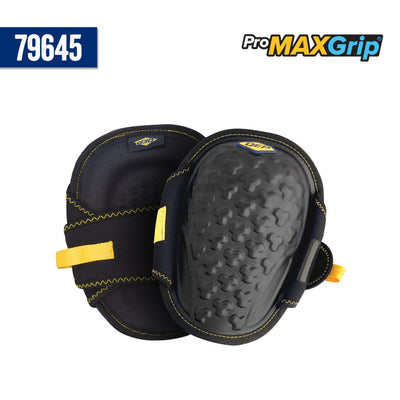

Gel, non-marring cap	Moving between hard and soft surfaces	Non-marring cap that won't scratch the floor (QEP ProMAX Gel)^[9]

Padding and straps

Comfort over a full day comes down to the insert and how the pad stays in place.

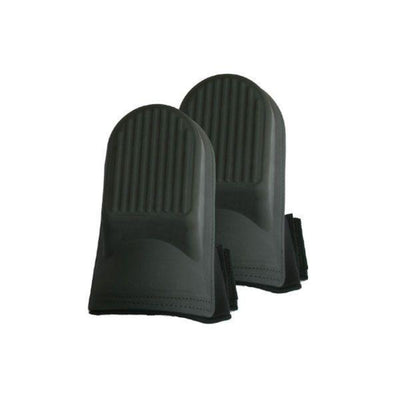

Thick foam or spring inserts spread pressure. The Gundlach 370 Shirpads use a spring insert to take direct pressure off the knee.^[10]
Smooth skins keep grit off the floor. The Crain 199 has a polyurethane skin so splinters and other sharp debris don't build up and scratch the floor.^[11]

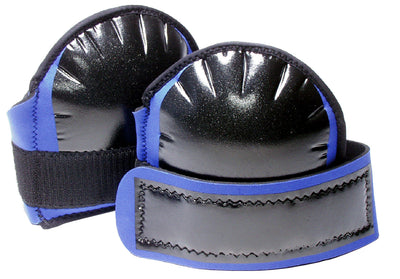

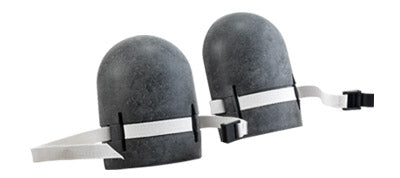

Straps: hook-and-loop straps adjust quickly but collect carpet fuzz. The Crain 198 uses buckles for that reason.^[12] The Gundlach 209 straps sit below the knee to prevent chafing.^[13]

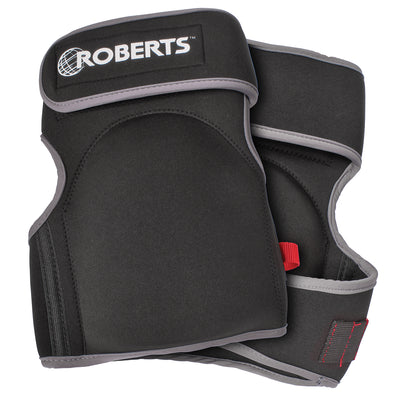

Kicking: if you still use a knee kicker, pick a pad built for it, such as the Roberts Pro Comfort.^[14]

Fit and care

A pad only protects if it stays centered on the kneecap.

Center the pad on the kneecap, not below it.
Snug the straps so the pad doesn't slide when you shift your weight, without pinching behind the knee.
Check the cap for embedded grit before kneeling on a finished floor. Grit in the cap scratches.
Replace pads when the insert has flattened or the cap has worn through.

Common mistakes

Most knee pad problems come from using one pair for everything.

Hard caps on sheet vinyl. They can dent or scuff it. Switch to soft or no-cap pads.
Soft pads for demo. Tack strip and debris cut through them.
Loose straps. A pad that slides off the kneecap does nothing.
Relying on pads alone. Use stand-up tools and a power stretcher where you can.
