Transition Strips & Thresholds by Height Difference

How to pick a transition by the height difference between floors, what the ADA allows on accessible routes, and the mistakes that cause trip edges and failed floating floors.

Updated · 4 min read

Pick a transition by measuring the finished height of each floor, including underlayment and adhesive, then matching the profile to the difference. On commercial and public jobs, the ADA sets the limits for edges on accessible routes.[1]

Quick answer by height difference

Measure the difference between the two finished floors, then find your row.

Height difference What the ADA allows[1] Typical profile
Same height No change in level T-molding, T-cap or joiner
Up to 1/4" May be vertical (303.2) Low-profile reducer or edge cap for a clean, protected edge
Over 1/4" up to 1/2" Must be beveled, no steeper than 1:2 (303.3) Reducer sized to the height
Over 1/2" Must be a ramp (303.4, ramps per 405) Build up the low side with patch or leveler, or use a ramp profile

Section numbers refer to the 2010 ADA Standards.[1] For carpet on accessible routes, pile height is 1/2" max and exposed edges need trim fastened to the floor.[1]

The profiles, explained

Transitions come in a handful of basic shapes, and each one solves a specific edge.

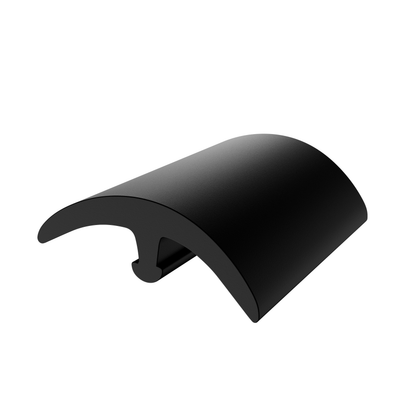

  • T-molding / T-cap: a T-shaped profile for two floors at the same height. The stem sits in the gap between them. On floating floors it covers the expansion gap.

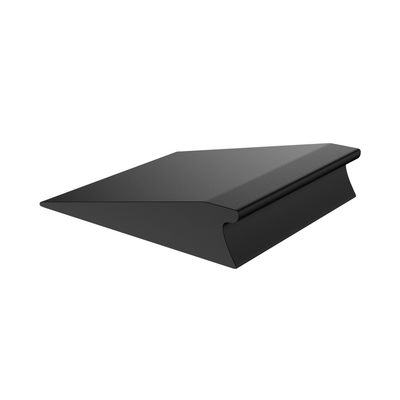

  • Reducer: a sloped profile that ramps down from a thicker floor to a thinner one. Sized by the height it covers (1/8", 1/4", 3/8", 1/2").
  • Overlap / material-to-substrate reducer: laps over the edge of the flooring and ramps down to bare concrete or a thin floor. Common at the edge of a phased install.
  • Carpet gripper (tapdown or Z-bar): metal with pins that grip stretch-in carpet and tuck the edge under a lip. Tapdown styles are hammered closed over the carpet.

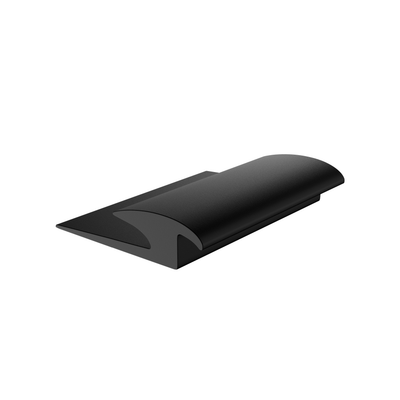

  • Carpet joiner and cerco bar: joiners butt carpet to carpet or carpet to hard surface; cerco bars edge carpet next to tile.
  • Edge cap / end cap: finishes a floor against a vertical surface like a slider track or fireplace hearth where there's no second floor to meet.
  • Stair nosing: covers the front edge of a step. See Installing vinyl stair treads and wood and LVP stair nosing.

Rubber, vinyl or metal

Once you know the shape you need, the material comes down to traffic, substrate and look.

Material Good for Watch for
Rubber Commercial traffic and rolling loads. Flexes over slightly uneven substrates and comes in long rolls, so fewer joints Needs the right adhesive; can telegraph substrate bumps
Vinyl Light commercial and residential. Lower cost, wide color range Stiffer and more brittle in cold rooms; can dent under carts
Aluminum / metal Carpet edges, heavy traffic, and anywhere you need a mechanical grip Exposed fasteners; must be cut clean and deburred

Matching profile to floor pair

Find your floor pair below for the profile that usually fits.

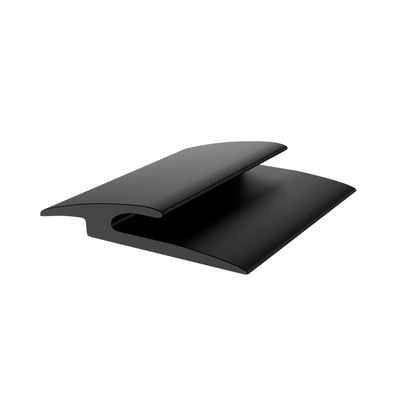

  • Carpet to hard surface: carpet gripper or tapdown gripper on stretch-in carpet; a carpet-to-resilient reducer on glue-down.
  • Resilient to resilient, same height: T-cap or joiner.
  • Resilient or carpet to bare concrete: a material-to-substrate reducer.
  • Tile to carpet or resilient: a tile reducer or cerco bar sized to the tile thickness.
  • Floating floor to anything: a profile that covers the expansion gap without pinning the floating floor down.

How to measure

The right profile starts with an accurate measurement of both finished floor heights.

  1. Measure each side's finished height: flooring plus underlayment plus adhesive or pad.
  2. Subtract. That number picks the row in the table above.
  3. Check the doorway. The transition should sit under the closed door, not in the swing path.
  4. For floating floors, leave the manufacturer's expansion gap at the transition and fasten the track to the subfloor, not through the floating floor.

Installing it

A good transition is mostly careful cutting and a solid dry fit before anything gets glued or fastened.

  1. Cut to length with a miter shear or fine-tooth saw. Metal gets a hacksaw or chop saw with a non-ferrous blade, then a file to deburr.
  2. Dry-fit before you glue or fasten. The profile should sit flat and touch both floors along its full length.
  3. Glue rubber and vinyl profiles with the adhesive the profile maker specifies. Roll or weight them while the adhesive grabs.
  4. Snap-in profiles go into a track fastened to the subfloor. Set the track first, then the cap.
  5. Tapdown gripper: fasten the base, stretch the carpet over the pins, trim, tuck, and close the lip with a rubber mallet and a block so you don't dent the face.

Common mistakes

Most transition problems show up as a trip edge, a lifted strip or a floating floor that won't move.

  • Measuring before the underlayment goes down. The difference changes by the pad thickness.
  • Pinning a floating floor. Nailing or gluing through it at the transition causes peaking and gaps. See Peaking, gapping and bounce in floating floors.
  • Using a reducer for a difference over 1/2" on an accessible route. That needs a ramp.[1]
  • Leaving a carpet edge untrimmed. It frays and becomes a trip edge.
  • Short pieces in a doorway. Use one piece across the opening. Joints in a transition are where it lifts first.

Profiles we carry

These are the transition profiles we stock for the most common floor pairings.

References

  1. U.S. Access Board: 2010 ADA Standards, 302 and 303
